The I.T.S. Framework State Machine:
A Boolean Algebra for Any Configurable Enterprise Workflow

Publication note. The application captures in this article contain demonstration and test data, not real customer, member, patient, claim, provider, user, or production-record information. Environment, host, database, and server identifiers were removed where present.

The Architectural Problem

Long-running enterprise work rarely fits a single status column. A claim can be received, reviewed, adjudicated, paid, appealed, reopened, and archived. Some of those facts describe the present; others describe a durable milestone. Several tracks can advance independently. What a user may do next depends on a combination of facts rather than one enumerated state name.

An enumerative state machine attempts to name every valid combination. With n independent Boolean statuses, however, the potential state space contains 2ⁿ combinations. Even a modest catalogue quickly makes a hand-authored graph incomplete, repetitive, and difficult to govern.

The I.T.S. Framework takes the opposite approach:

1. Define a finite catalogue of meaningful statuses.
2. Represent an entity's current state as the subset of those statuses currently true.
3. Define actions as transformations that assert some statuses and retract others.
4. Define applicability as predicates over the current state and relevant related states.
5. Store the declarations as data and let the framework compile and execute them.

The engine does not know what Approved, Archived, or Carrier Paid means. It knows how to evaluate sets, guards, and transformations. Business meaning remains in configuration.

Operating Context and Architectural Boundary

The production I.T.S. Framework desktop runtime and its desktop modules target .NET 10 for Windows. The stack includes Windows Forms, ADO.NET, DataSet/DataRow, and SQL Server 2025. The database is the authoritative contract; the WinForms interface binds directly to relational runtime objects and obtains workflow configuration through the shared data runtime.

Deployments can run on premises, in a private cloud, or on AWS or Azure. SQL Server can be local, hosted on a cloud virtual machine, or supplied through a managed cloud database service when its latency, integration, security, operational, and feature-compatibility characteristics fit the deployment.

In the principal operating model, application servers remain close to SQL Server and users connect through RDP or RDS. The remote client receives pixels. The internal desktop architecture therefore does not require an HTTP/JSON boundary between every WinForms module and the database.

The Formal State Space

Fix one workflow W. Let its status universe be the finite set

U_W = {u₀, u₁, …, u_n-1},   0 ≤ n ≤ 63.

A workflow state is a subset of that universe:

S(W) = ℘(U_W) ≅ {0,1}ⁿ.

The set reading and the vector reading describe the same object. In the set reading, a status is either a member of the current state or it is not. In the vector reading, the statuses are the multiple Boolean dimensions of the state space, and each individual status supplies one coordinate:

s = (b₀, b₁, …, b_n-1),   b_i ∈ {0,1}.

A status is therefore not an enumerated name for the entire state. It is one independent dimension along which that state can vary. The complete state is the multidimensional Boolean vector formed by all status coordinates in the selected typed universe.

Reading	Formal object	Framework representation
Set	s ⊆ UW	The named statuses currently true
Vector	s ∈ {0,1}n	The individual bits of flg
Scalar encoding	φW(s)	One nonnegative BIGINT

The potential state space contains 2ⁿ combinations. That is not the same as saying every combination is reachable. Initial conditions, mutual-exclusion rules, guards, and the configured action catalogue determine a reachable subset R_W ⊆ S(W). This distinction matters: the algebra defines what can be represented; configuration defines what the deployed process can actually produce.

Encoding State as One Integer

Assign each status u_i a stable bit index i. The encoding is

φ_W(s) = Σ_i=0^n-1 χ_s(u_i) · 2ⁱ,
with φ_W : ℘(U_W) → {0,1,…,2ⁿ-1}.

Here χ_s is the indicator function: it returns 1 when the status belongs to the state and 0 otherwise. The codomain is the interval of representable masks, not all integers. Within that interval, the encoding is bijective: every subset has exactly one mask and every valid mask decodes to exactly one subset.

More precisely, φ_W is an isomorphism between the Boolean algebra of subsets and the algebra of n-bit masks under bitwise operations:

Set operation	Mask operation	Meaning
s ∪ t	s | t	Statuses present in either set
s ∩ t	s & t	Statuses present in both sets
s \ t	s & ~t	Statuses in s but not t
m ⊆ s	(s & m) = m	The state contains every required bit
s ∩ m ≠ ∅	(s & m) > 0	The state contains at least one selected bit

The cost of each mask expression is bounded by a small, fixed number of scalar operations; it does not grow with the number of set bits inside the mask. That does not make an entire SQL query constant-time. Row count, joins, memory, I/O, cardinality estimation, and access paths still determine query cost.

The complement requires a universe

Set complement is always relative to U_W. A SQL Server BIGINT has 64 physical bits, while a valid workflow uses only indices 0 through 62. Therefore ~m by itself flips bits outside the workflow universe and may produce a negative integer. Expressions such as s & ~r remain safe because s contains only valid state bits; a standalone complement must be intersected with the workflow's universe mask.

Index and value are different contracts

Value	Purpose	Example
ix	Readable, stable bit position used while authoring	39
flg	Computed value used by the runtime	549755813888

CASE
    WHEN [ix] > 62 THEN -1
    ELSE POWER(CONVERT(BIGINT, 2), [ix])
END

ITS_MLWFFlg.flg is computed from ix, so the authoring index and runtime value cannot drift independently.

Actions as Guarded State Operators

An action declares two sets: statuses to assert, a, and statuses to retract, r. Its state operator is

T_(a,r)(s) = (s \ r) ∪ a
≅
(s & ~r) | a.

An action is therefore an assert/retract status operator over a typed state universe. Its masks identify the status dimensions to make true and the dimensions to make false; they do not replace the state with one enumerated label.

The operator T_(a,r) is a total function on the representable state space. The business transition is not necessarily total, because the action may be legal only when a guard holds. With guard g, the configured transition is the partial function

τ_(a,r,g)(s) = T_(a,r)(s)   when   g(s)=true;
τ_(a,r,g)(s) is undefined otherwise.

This separation is fundamental. The operator answers what would the state become? The guard answers may this operator be applied here? Confusing effect with restriction is one of the most dangerous configuration errors in a workflow engine.

Current state s
      |
      v
Evaluate guard g(s) ---- false ----> refuse the action
      |
     true
      |
      v
Apply T(a,r) ----> new current state

Algebraic Properties and Their Limits

The closed form makes several properties provable rather than anecdotal.

This proves that repeating the pure state calculation makes no further state change. It does not prove that replaying an entire business action is harmless. Audit inserts, notifications, external calls, financial postings, and other side effects require their own transaction and idempotency controls.

The Four Canonical Guard Polarities

The engine's guard grammar combines four quantified relationships between current state s and a configured mask m:

Clause	Set form	Mask form	Reads as
Require all	m ⊆ s	(s & m) = m	Must have every selected status
Require any	s ∩ m ≠ ∅	(s & m) > 0	Must have at least one
Forbid any	s ∩ m = ∅	(s & m) = 0	Must have none
Forbid all	m ⊈ s	(s & m) ≠ m	Must be missing at least one

IF (@sflg   <> 0 AND (@flg & @sflg)   <> @sflg)  RETURN 0; -- require all
IF (@soflg  <> 0 AND (@flg & @soflg)   = 0)      RETURN 0; -- require any
IF (@snflg  <> 0 AND (@flg & @snflg)  <> 0)      RETURN 0; -- forbid any
IF (@sonflg <> 0 AND (@flg & @sonflg) = @sonflg) RETURN 0; -- forbid all

The four clauses arise from two quantifiers—all and any—crossed with two polarities—require and forbid. A guard row can combine the clauses by conjunction.

The empty mask disables an optional clause

The empty set is not naturally true for every primitive. “Require any element of the empty set” is false. The engine therefore guards each optional branch with m <> 0. In the configuration language, zero means this clause is absent, so the enclosing guard treats it as neutral.

A precise expressiveness boundary

These clauses are complete for the engine's chosen four-polarity mask grammar. They are not functionally complete for every Boolean predicate over n bits. A condition such as “at least two of these three statuses,” exclusive-or, or an arbitrary disjunction of conjunctions cannot always be represented by one row containing four masks. Such requirements need multiple configured expressions, a composed group, a checklist, or a specialized validator.

Typed Workflows, Status Dimensions, and Threads

Each workflow owns a separate status universe. Reusing bit index 8 in two workflows does not make the statuses equivalent. The integer alone is therefore not the complete type of a state; the meaningful value is the pair (workflow_id, flg). The workflow_id selects the universe in which the mask must be interpreted.

Universes contain thread-specific spaces

Within one workflow universe U_W, each thread j selects a set of status dimensions D_W,j ⊆ U_W. Those dimensions induce the thread's own Boolean state space:

S(W,j) = ℘(D_W,j) ≅ {0,1}^|D_W,j|.

The hierarchy is therefore explicit: the workflow identifies a typed universe; statuses supply its Boolean dimensions; and threads organize selected dimensions into distinct business spaces. Different workflow universes can contain different status catalogues and different collections of thread spaces.

When the configured threads form independent, disjoint tracks, their dimensions partition the workflow universe:

U_W = D_W,1 ⊎ D_W,2 ⊎ … ⊎ D_W,m,
S(W) ≅ S(W,1) × S(W,2) × … × S(W,m).

If a deployment uses threads as overlapping classifications instead, each thread still identifies a valid subspace, but the product expression is no longer an independent decomposition. The configuration determines which interpretation applies.

Across independent workflows, the total application state is another typed Cartesian product:

S_total = S(W₁) × S(W₂) × … × S(W_k).

For finite Boolean spaces, direct-sum and product constructions are isomorphic, but “product of typed states” expresses the implementation more accurately: every universe retains its own catalogue, thread spaces, encoding, and identity. The framework defines no business comparison between equal numeric masks from different universes.

Threads provide a local progress coordinate

A thread can impose a configured step order over the status dimensions assigned to its space. The runtime may then derive a progress summary for thread D_W,j:

p_W,j(s) = max { step(i) : u_i ∈ D_W,j and u_i ∈ s }.

This is an ordinal summary function, not a linear projection in the strict algebraic sense. Across several threads, progress becomes the tuple

p_W(s) = (p_W,1(s), p_W,2(s), …, p_W,m(s)).

Two entities can therefore be ahead on different tracks without either being globally “farther along.” That partial ordering is the formal reason the framework does not force all workflow progress into one scalar.

The Schema as an Authoring Language

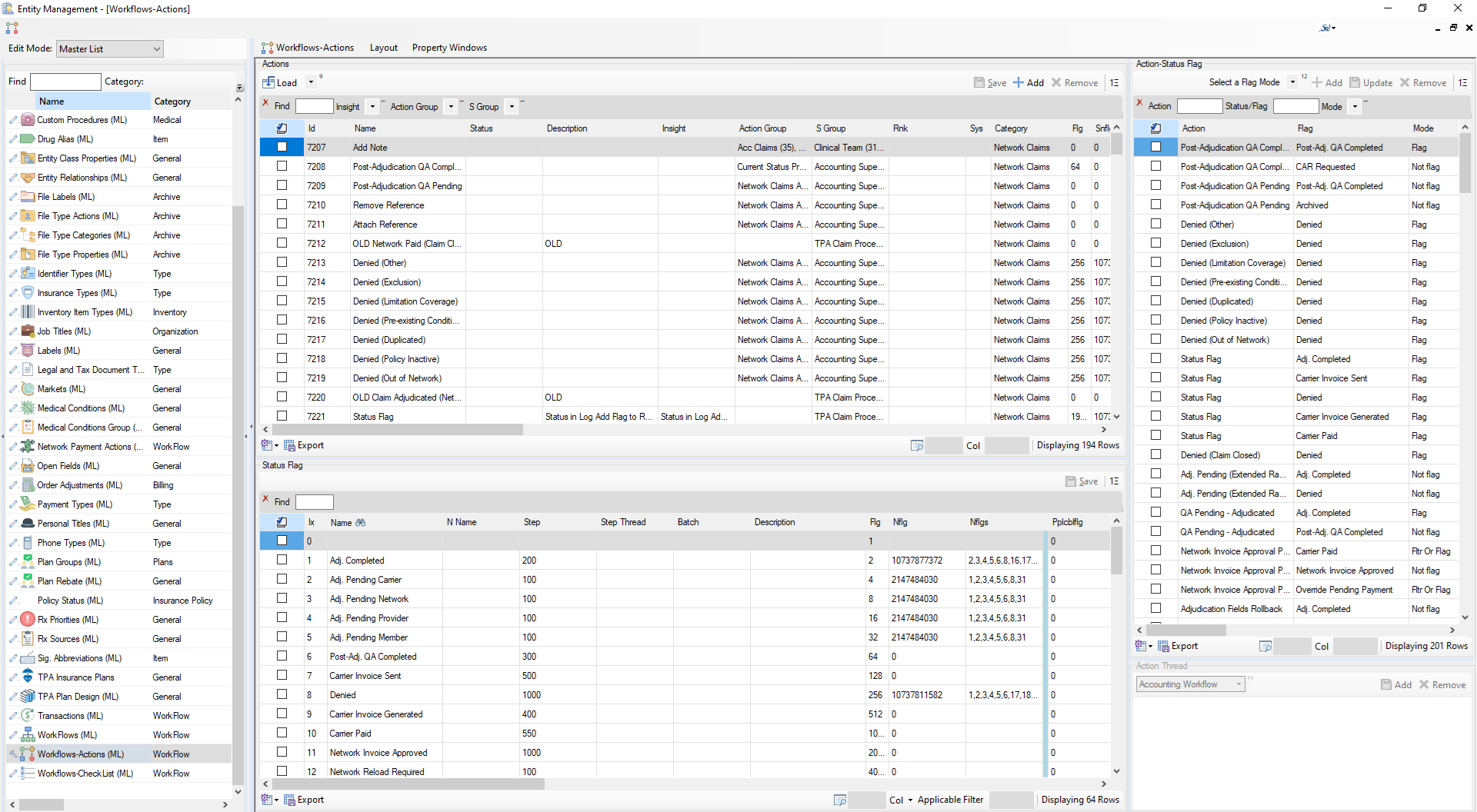

The physical engine is driven by two principal catalogues and a normalized authoring surface.

ITS_MLWFFlg: the status catalogue

Column	Role
workflow_id	Selects the typed status universe.
ix	Stable bit index from 0 through 62.
flg	Computed value 2ix.
step	Optional ordinal position within a configured thread.
step_thread	Identifies the track to which the status belongs.
nflg	Statuses automatically retracted whenever this status is asserted.
pplcbl*	Predicates that govern asserting this status.
rmvpplcbl*	Predicates that govern retracting this status.

ITS_MLWFActn: the operator catalogue

A row represents a reusable expression. Historical naming calls it an action, but its configured masks can be consumed as an effect, a guard, or a filter according to context.

Column	Meaning	Role
flg	Statuses explicitly asserted	Effect
nflg	Statuses explicitly retracted	Effect
snflg	Retractions derived from asserted statuses	Derived effect
npflg	Negative propagation to related entities	Effect
pplcblflg	Require all selected statuses	Applicability
pplcblorflg	Require at least one selected status	Applicability
pplcblnflg	Forbid every selected status individually	Applicability
pplcblprvflg	Require statuses on a related or previous entity	Applicability
pplcblprvnflg	Forbid statuses on a related or previous entity	Applicability
chkflg	Require checklist items	Applicability
chknflg	Forbid blocking checklist items	Applicability
oflg	Filter rows that have all selected statuses	Query
onflg	Filter rows that have none of the selected statuses	Query

ITS_MLWFActnFlg: the normalized declaration

Administrators do not need to calculate decimal masks or decide which of thirteen columns receives a bit. They author normalized statements:

(actn_id, flg_ix, mode_id)

Example:
(Approve, Approved, Assert)
(Approve, Reviewed, Require all)
(Approve, Archived, Forbid any)

The action-flag compiler validates the declaration, routes it to the correct semantic role, and recomputes the denormalized masks used by the execution path. The wide mask row is therefore a compiled projection; the normalized rows are the authoring contract.

This distinction is what makes a collection of visually indistinguishable BIGINT columns governable. A naked integer has no semantic role. The normalized row supplies that role before compilation.

Three Roles for the Same Mask Vocabulary

The stem flg means “a set of statuses.” Prefixes describe how that set is interpreted. The same compact vocabulary participates in three different operations.

Context	Positive mask	Negative mask	Result
Effect	Bits to assert	Bits to retract	A new state
Applicability	Statuses required	Statuses forbidden	Allowed or refused
Filter	Rows must have these	Rows must not have these	A selected work set

Role 1: effect

new_flg = (old_flg & res_nflg) | actn_flg

res_nflg = ~(snflg | nflg)

actn_flg asserts statuses. snflg | nflg identifies statuses to retract. The engine inverts that retraction set into the preservation mask res_nflg, so one expression clears and sets bits.

Role 2: applicability

The pplcbl* columns feed the guard grammar. A positive mask can require all or any; a negative mask can forbid any or all. These expressions decide whether an operator is offered and whether execution is valid.

Role 3: filter

oflg and onflg select entities for a work queue. The predicate is mathematically the same kind of relation used by a guard; its result is lifted from one Boolean decision to a set of matching rows.

A mask has no complete meaning without its role. The value 256 can mean “assert Denied,” “retract Denied,” “require Denied,” or “exclude Denied.” Establish the consumer before interpreting the number.

Groups as Binding Points

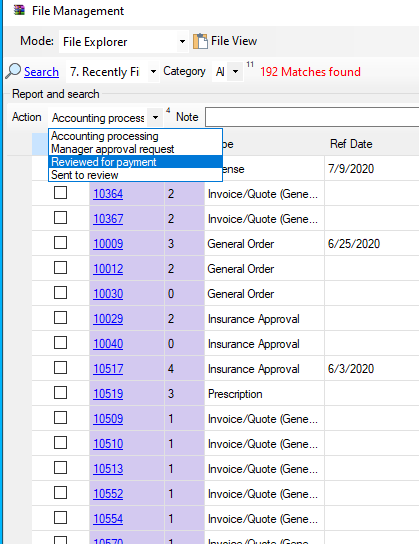

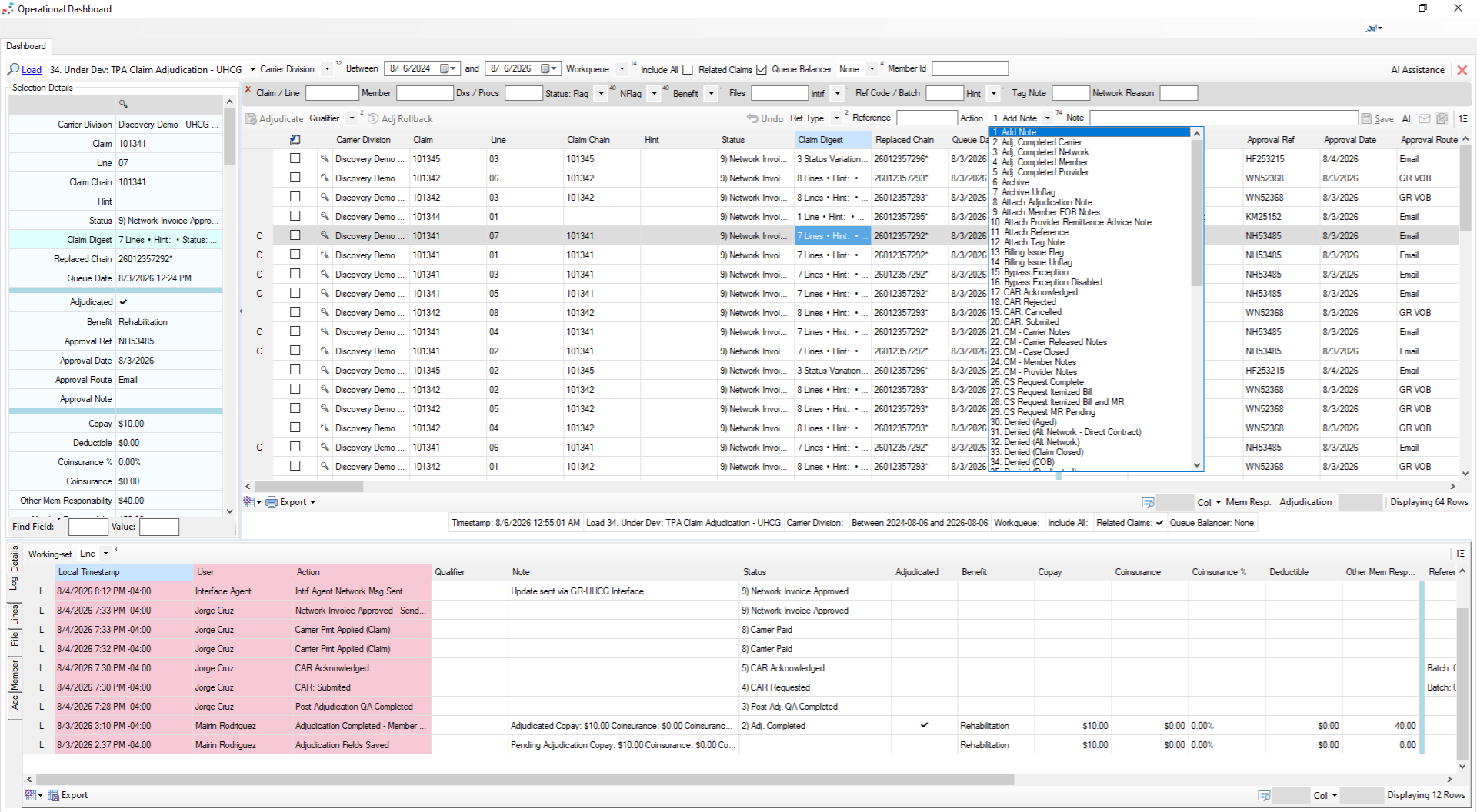

An action group is not merely a folder. It is a binding point that mounts reusable expressions on a particular surface. The consuming surface determines how the expression is read.

Mounted on	Expression is consumed as
Command list or dropdown	A transition: apply assert and retract masks
Work queue or saved filter	A predicate: select matching entity states
Classifier or status display	A named interpretation of a state pattern
Composite group	A reusable part of a larger surface

Security subscriptions intersect with group membership. An expression can exist, be valid for the current state, and still remain invisible because the effective security group does not grant access to the surface on which it is mounted.

This reuse is sometimes described as polymorphism. It is not language-level subtype polymorphism; it is controlled semantic reuse. A configured row supplies masks, and a typed consumer selects the operation those masks participate in.

Derived Effects and Status-Level Invariants

ITS_MLWFActn contains both nflg and snflg, but they have different ownership.

• nflg is authored: the action explicitly retracts the selected statuses.
• snflg is derived: the statuses being asserted contribute their own configured retractions.

Suppose Approved and Rejected are mutually exclusive. The invariant belongs to the status catalogue, not to every action that might assert one of those statuses. If Approved.nflg contains Rejected, then every current or future action that asserts Approved automatically inherits the retraction.

snflg(action) = ⋃ { nflg(u) : u ∈ asserted(action) }.

The union symbol here means bitwise aggregation. The save procedure recomputes that union when declarations change. Action authors do not edit snflg directly.

Why the invariant belongs to the protected status

If every action had to repeat the exclusion rule, correctness would depend on remembering all existing actions and every future action. Attaching the invariant to the status that owns it changes the maintenance problem from “update every consumer” to “declare the rule once.”

Approved.nflg includes Rejected
            |
            +-- Approve action -----------+
            +-- Supervisor Approve -------+-- derive the same retraction
            +-- Batch Approve ------------+
            +-- actions added years later +

Effect is not restriction

Evaluate real deltas

Status-level rules should be evaluated only for bits that actually change:

set_bits = a_flg  & ~flg; -- off before, on after
rmv_bits = a_nflg &  flg; -- on before, off after

Testing every bit named by a broad action would revalidate statuses that are already true or already absent. Delta evaluation aligns validation with the idempotent state operator: when a repeated operator changes no bit, there is no new status transition for a status-level rule to approve.

State, History, and Audit

The runtime preserves three related but distinct facts:

Value	Meaning	Behavior
flg	Statuses currently true	Can assert and retract bits
acc_flg	Statuses that have ever been true	Monotonic; bits never clear
Log rows	Ordered transition history	Append-only sequence with actor, time, action, and resulting state

The current state is calculated once inside the persistence statement:

INSERT INTO dbo.WorkflowEntityLog
    (..., ltst, flg, acc_flg, actn_flg, actn_nflg, ...)
SELECT
     ...
    ,1
    ,E.flg
    ,E.flg | ISNULL(L.acc_flg, 0)
    ,A.flg
    ,A.res_nflg
    ,...
FROM ...
CROSS APPLY
(
    SELECT (ISNULL(L.flg, 0) & A.res_nflg) | A.flg AS flg
) E;

ITS_ActnGet supplies the preservation mask already derived from explicit and status-level retractions. The persistence procedure therefore cannot accidentally apply nflg while omitting snflg.

The latest log row is marked with ltst = 1. The prior latest row is retired in the same transactional operation. Recording actn_flg and the effective preservation or retraction information allows an auditor to distinguish two transitions that happen to produce the same final mask.

flg answers “where is the entity now?” acc_flg answers “which milestones has it ever reached?” The log answers “in what order, by whom, and through which configured actions did it move?”

Related Video: The Runtime Log in Motion

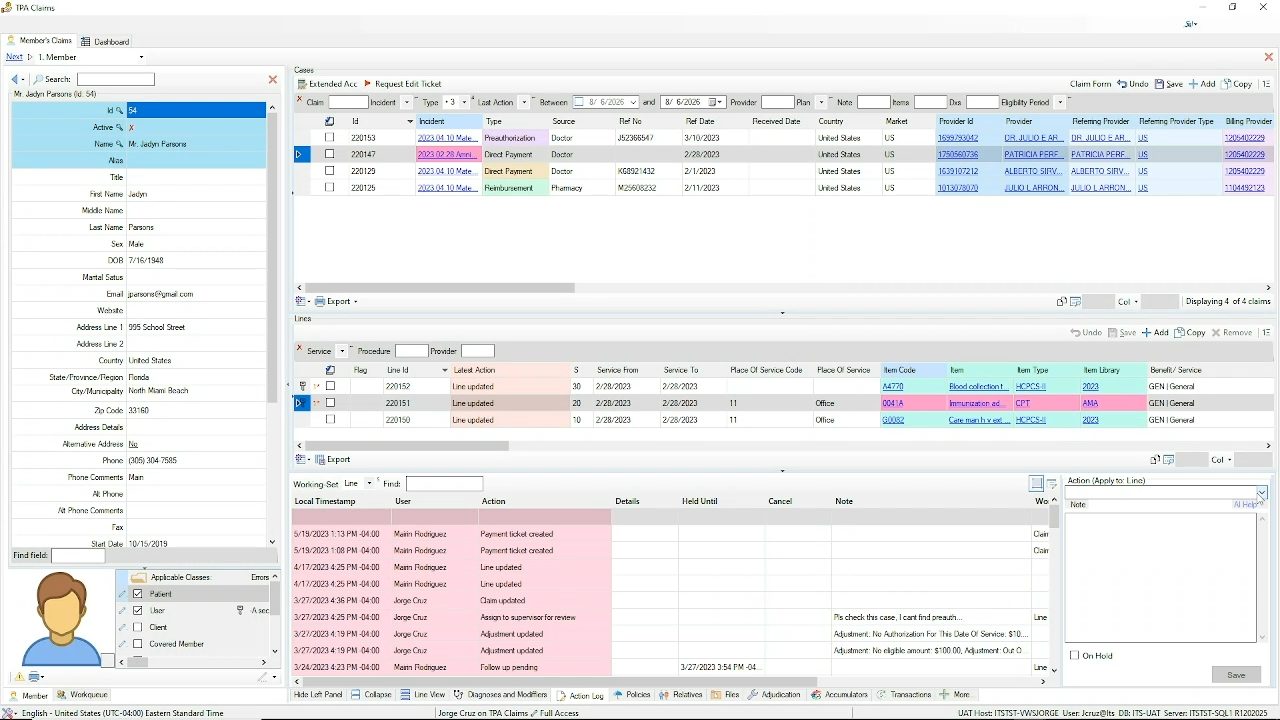

This short excerpt shows the Action Log inside a complete application built with the I.T.S. Framework. The user-facing workspace remains visible while the log exposes the ordered actions beneath it, connecting configured operators to the append-only history described above.

▶Watch 15-second log excerpt

What to watch: Action Log selected at 00:00 · ordered history visible at 00:03 · configured action catalogue at 00:06 · return to the complete log at 00:09. All displayed values are demonstration and test data.

Work Queues, Filtering, and Query Performance

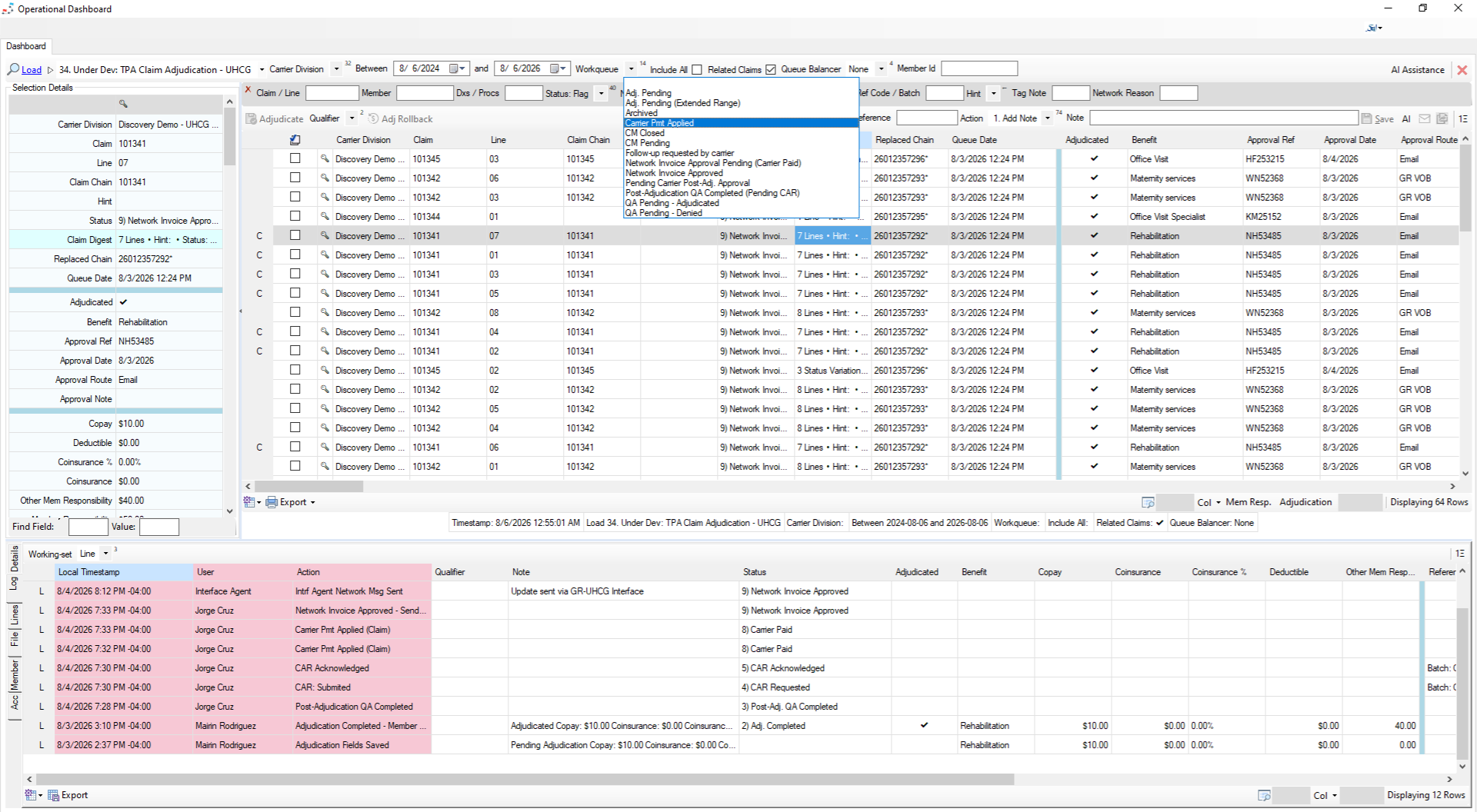

A configured work queue reads an expression as a predicate rather than an effect:

SELECT TOP (1)
       @sflg  = flg,
       @snflg = nflg,
       @soflg = oflg,
       @sonflg = onflg
FROM dbo.ITS_MLWFActn
WHERE id = @workqueue_id;

SELECT L.*
FROM dbo.WorkflowEntityLog AS L
WHERE L.ltst = 1
  AND L.env = @env
  AND (@sflg  = 0 OR (L.flg & @sflg)  = @sflg)
  AND (@snflg = 0 OR (L.flg & @snflg) = 0)
  AND (@soflg = 0 OR (L.flg & @soflg) > 0)
  AND (@sonflg = 0 OR (L.flg & @sonflg) <> @sonflg);

The predicate should be applied after selective relational conditions such as current-row marker, environment, tenant, owner, date range, or entity key. A dynamic expression such as (flg & @mask) = @mask is not normally seekable through an ordinary B-tree index on flg; SQL Server must evaluate it for each candidate row that reaches that stage.

Preferred execution shape	Risky execution shape
Seek or narrow by tenant, environment, current-row marker, owner, and date	Begin with a dynamic bitwise test across the entire log
Evaluate masks over the already-scoped rows	Assume the compact expression automatically makes the query selective
Use computed indexed columns only for stable, high-value fixed predicates	Create many speculative indexes for arbitrary runtime masks

An index on flg can still serve exact-equality workloads, and an indexed computed column can serve a fixed mask expression when justified. The limitation is specifically the expectation that one ordinary index can seek efficiently for arbitrary masks supplied at runtime.

A bitmask is a cheap test on a row already in scope. It is an expensive way to discover candidate rows without another selective predicate.

The -1 Sentinel and Practical Hazards

-1 means all physical bits, not a valid workflow state

In two's-complement BIGINT, -1 has every physical bit set. The engine uses it as an “all bits” sentinel in helpers and optional mask parameters. It lies outside the valid nonnegative state encoding, which uses bit positions 0 through 62.

• An index above 62 produces the sentinel rather than overflowing into the sign bit.
• Rendering helpers can interpret -1 as “all configured statuses.”
• An optional check mask can default to -1, making chk_flg & flg preserve every valid state bit.

The sentinel must never be persisted as an entity's current state. Treating it as an ordinary state would collapse the distinction between every configured status, unused physical bits, and the reserved sign position.

Never add or sum masks

Set union is bitwise OR, not arithmetic addition. If two masks overlap, addition carries into another bit. For example, 12 and 24 both contain bit 8; 12 + 24 = 36 clears the shared bit through carry and asserts a bit nobody declared. Use | or aggregate normalized single-bit rows through a union-safe method.

Cast large literals explicitly

Large integer-looking constants do not always enter a T-SQL expression as BIGINT. Cast high-bit values explicitly before bitwise operations:

CAST(549755813888 AS BIGINT)

Use parentheses even when precedence is defined

In T-SQL, bitwise AND/OR have higher precedence than comparison operators, and comparisons have higher precedence than logical AND. Therefore flg & m = m evaluates the bitwise expression before equality. Parentheses such as (flg & m) = m should still be used because they make the intended grouping explicit. The ordering is documented in Microsoft Learn's T-SQL operator-precedence reference.

Do not assume a dense catalogue

Bit index i need not have a configured status row. Helpers that walk the physical bit range must tolerate sparse catalogues. A missing catalogue row should not silently eliminate an entity from a result.

Do not edit compiled masks directly

The masks on ITS_MLWFActn are projections maintained from ITS_MLWFActnFlg. Direct updates bypass validation, semantic typing, derivation, and audit. The next legitimate save can overwrite the manual change because the normalized declarations remain authoritative.

Where the Framework Ends

The framework owns the algebra, catalogues, normalized authoring contract, compilation procedures, operator execution, guard grammar, rendering helpers, group composition, and security-aware presentation. Those objects can be deployed without knowing any specific claim, invoice, order, document, or approval process.

A solution owns its workflow catalogue, status names, transitions, applicability rules, group bindings, security subscriptions, checklists, and the entity log that carries state. Those are solution data, even when the framework supplies the tables and procedures that govern them.

The database half and client half are both necessary. SQL Server validates declarations, derives masks, applies state transitions, and preserves audit history. WinForms turns named groups into usable surfaces, hides actions the user may not execute, resolves work queues, and displays status names instead of opaque integers.

• Solutions do not fork the engine. A new business restriction normally becomes a configured predicate or validator.
• The engine does not learn business statuses. Literal masks with domain meaning belong in catalogue rows, never framework code.
• Escape boundaries remain explicit. Cardinality rules, cross-aggregate constraints, external approvals, and distributed side effects may require validators or orchestration beyond the four-polarity grammar.

Object Map

The following objects form the conceptual engine. CRUD procedures, audit triggers, and solution-specific tables are intentionally omitted.

Object	Kind	Responsibility
ITS_MLWorkFlow	Table	Workflow definition and typed isolation boundary
ITS_MLWFFlg	Table	Status catalogue, bit index, thread, effects, and status-level rules
ITS_MLWFActn	Table	Compiled operator and predicate masks
ITS_MLWFThread	Table	Named workflow tracks
ITS_MLWFActnThread	Table	Action-to-thread assignment
ITS_MLWFActnGrp	Table	Binding surface for transitions, filters, and classifications
ITS_MLWFActnGrpActn	Table	Expression-to-group binding
ITS_MLWFActnGrpGrp	Table	Composition of groups from other groups
ITS_MLWFActnGrpThread	Table	Group scope by thread or stage
ITS_MLWFSGrpAGrpSubscription	Table	Security-group access to an action surface
ITS_MLWFActnFlg	Table	Normalized (action, bit, mode) authoring contract
ITS_MLFlgMode	Table	Semantic type catalogue for flag declarations
Action-flag compiler	Database contract	Validates declarations and recompiles masks; implementation name intentionally omitted
ITS_ActnGet	TVF	Reads an expression as an effect and derives res_nflg
ITSWF_GetFlgActnGrp	TVF	Reads grouped expressions as predicates
ITSWF_GetActnGrps	TVF	Resolves the surfaces on which an expression is mounted
ITS_FnWFEvalFlgFltr	TVF	Set-based evaluation of the guard grammar
ITS_FnWFEvalFlgFltrScalar	Function	Procedural evaluation of the same grammar
ITSWF_EvalFlgApplicability	TVF	Status-level validation; one row per violation
ITSWF_FlgApplicabilityMsg	TVF	Renders violations as human-readable messages
ITSWF_GetStatus	TVF	Converts masks to status names
ITSWF_GetStatusStep	TVF	Derives the furthest configured step per thread
ITSWF_GetFlgStr	TVF	Renders present and absent status names
ITS_GetTallyFlg	TVF	Supplies the physical bit index/value sequence

Inline table-valued functions are preferred where their relational definitions can be incorporated into the calling plan. Validators return a set of violations: zero rows means success. That convention composes naturally with EXISTS, NOT EXISTS, and APPLY.

Software Engineering Views of the Engine

The algebra describes the engine precisely, but no single diagram can expose every engineering concern. The following views apply complementary notations to the same implementation: orthogonal state regions for concurrency, a data model for authoring and compilation, a sequence diagram for execution order, a Petri net for open intervals, a marker projection for temporal queries, a data-flow pipeline for performance, and a component diagram for authority and trust.

The diagrams preserve the structure of the implemented engine while normalizing solution-specific database, table, trigger, and procedure names. They document the architecture without identifying a client or exposing a solution-specific persistence contract.

Which diagrams apply, and which do not

Most standard state-machine notations break down on this engine for one specific reason: the state is not a label; it is a 63-bit vector. A diagram that assumes one state at a time cannot describe it. The notation must match the question being asked.

Notation	Verdict	Why
Harel statechart with orthogonal regions	Use	Each bit is an independent concurrent region. This notation expresses simultaneity honestly.
Entity model of the metadata tables	Use	The authoring surface and the derived projection are separate tables; the distinction is invisible without a structural view.
Sequence diagram	Use	A single save crosses validation, insertion, marker maintenance, and dependent operations. Ordering is the point.
Petri net	Use	Transitions consume and produce facts. Tokens model pending cycles better than arrows between named states.
Data-flow or query pipeline	Use	Performance is governed by predicate order, which is a flow property rather than a structural one.
Component and trust boundary	Use	The engine spans database and client; authority must be drawn explicitly.
Flat finite-state machine, one bubble per state	Reject	Sixty-three independent bits allow up to 263 representable combinations. A flat graph is not merely large; it represents the model incorrectly.
UML class diagram of workflow domain objects	Reject	There is no parallel workflow domain-class model. Behavior lives in metadata rows and relational runtime contracts.
Use-case diagram	Reject	It adds no structural information that the configured action catalogue and authorization model do not already carry.

Orthogonal State Regions

This is the central software-engineering view. An entity does not sit in one named state; it occupies one Boolean sub-state in every applicable region at once. The composite state is the product of those regions, encoded as one BIGINT.

Domain and Data Model

The important structural fact is that the normalized authoring surface and the executable form are different tables. Editors write typed rows; the compilation procedure derives the bitmask columns. Hand-editing the derived side corrupts the contract because the source declaration and executable projection no longer agree.

State-Advance Sequence

One user action crosses six participants. Ordering is explicit: validation occurs before the insert, and latest-marker projections are recomputed after the append by the database-maintained projection path.

-- the state operator inside the normalized workflow save path
CROSS APPLY
(
    SELECT (ISNULL(previous_row.flg, 0) & action.res_nflg)
           | action.flg AS flg
) AS next_state;

-- retract first, then assert: T(s) = (s \ r) ∪ a

Petri Net: The External-Response Cycle

A pending condition is not one state name. It is an open interval between two status events. A Petri net expresses that directly: a token resides in the pending place until the acknowledging transition fires.

Latest-Marker Projection

Each marker applies the same windowed idiom to a different predicate: select the highest log identity within an entity partition that satisfies a condition. Placing the markers side by side explains how an append-only history can answer several current-state questions with narrow indexed access.

Query Pipeline: Narrow, Materialize, Scan

The index topology determines the mandatory evaluation order. Current-row, environment, entity, workflow, owner, and date predicates are sargable. A runtime test against an arbitrary bitmask is not. The correct plan narrows through indexed relational columns, materializes the candidate set when useful, and evaluates the mask only over that smaller relation.

Generic filtered-index role	Predicate
Current row by entity, workflow, and environment	WHERE ltst = 1
Latest status change by entity and scope	WHERE stts_ltst = 1
Latest action by entity and scope	WHERE actn_ltst = 1

Component and Trust Boundary

The engine is neither the database alone nor the client alone. Both halves participate, but only one side is authoritative. The client improves usability; the database preserves correctness regardless of the caller.

Final Principle

The engine is the implementation of a small, explicit algebra:

• A workflow state is a subset of a finite, typed status universe.
• Statuses are the Boolean dimensions of that state space.
• A mask is a lossless scalar encoding of that subset.
• An action is an assert/retract status operator.
• A legal transition is that operator restricted by a configured guard.
• A work queue applies related predicates across a scoped relation of current states.
• A thread selects status dimensions within its universe, defines a business state space, and yields a derived ordinal progress summary.
• The append-only log preserves ordering, while acc_flg preserves milestone reachability.

The mathematical structure does not replace the enterprise details. It gives those details a stable language. Statuses, actions, rules, groups, permissions, and work queues can change without changing the mechanism that evaluates them.

Configure the business vocabulary. Compile it into masks. Execute one rigorously defined engine.

Author's Preface

My training in telecommunications engineering began close to the machine: bits, registers, Boolean algebra, logical expressions, circuit simplification, applied algebra, microcontrollers, and digital systems. These concepts shaped not only what I learned, but also how I learned to analyze complex systems.

At its core, a digital telephone exchange is a large, specialized real-time computer. Moving from telecommunications into software development—and later studying programming theory and high-level languages in greater depth—did not replace that foundation. It added new layers of abstraction to it. I continued to approach software with the same tools and habits I had acquired while programming microcontrollers and designing digital circuits: representing state precisely, reducing expressions, separating control from behavior, and searching for the simplest structure capable of producing the required result.

The engine described in this article emerged from that way of thinking. Its use of bits, masks, Boolean expressions, and state transformations is not merely an implementation technique. It reflects a broader principle: even highly complex business workflows can often be reduced to a small, rigorous set of logical operations and then rebuilt as flexible, configurable systems.

This article therefore brings together several disciplines that have influenced my work: the abstraction and generalization of complex systems, process engineering, software engineering, low-level programming, and applied algebra.

The challenge is not only to design and implement such a system, but also to explain it. Complex architectures are often difficult to simplify and present clearly without losing the reasoning that makes them work. This article is an attempt to describe that reasoning as directly and precisely as possible.

— Jorge Cruz

Related Reading and References

Continue from the state-machine algebra into the framework contracts that execute and consume it.

• I.T.S. Framework: Convention over ConfigurationWhy configuration belongs before hard-coded application logic.
• The I.T.S. Framework Component ArchitectureWhere the workflow engine lives in the layered .NET 10 runtime.
• DataRow as EntityHow the relational row remains the runtime entity from SQL Server to WinForms and back.
• DAL as the Data Runtime EngineHow named datasets, parameters, caching, preparation, and persistence are orchestrated.

Primary and Technical References

• Claude E. Shannon: A Symbolic Analysis of Relay and Switching CircuitsThe 1938 primary paper connecting Boolean algebra to relay and switching systems.
• Wil M. P. van der Aalst, Arthur H. M. ter Hofstede, Bartek Kiepuszewski, and Alistair P. Barros: Workflow PatternsA foundational taxonomy of recurring workflow control-flow behavior; Distributed and Parallel Databases, 14(1), 5–51 (2003), DOI 10.1023/A:1022883727209.
• Microsoft Learn: Bitwise ANDOfficial T-SQL semantics for applying a bitwise conjunction to integer expressions.
• Microsoft Learn: Bitwise NOTOfficial guidance showing why integer storage width matters when complementing masks.
• Microsoft Learn: Operator PrecedenceThe official ordering of bitwise, comparison, and logical operators in T-SQL expressions.
